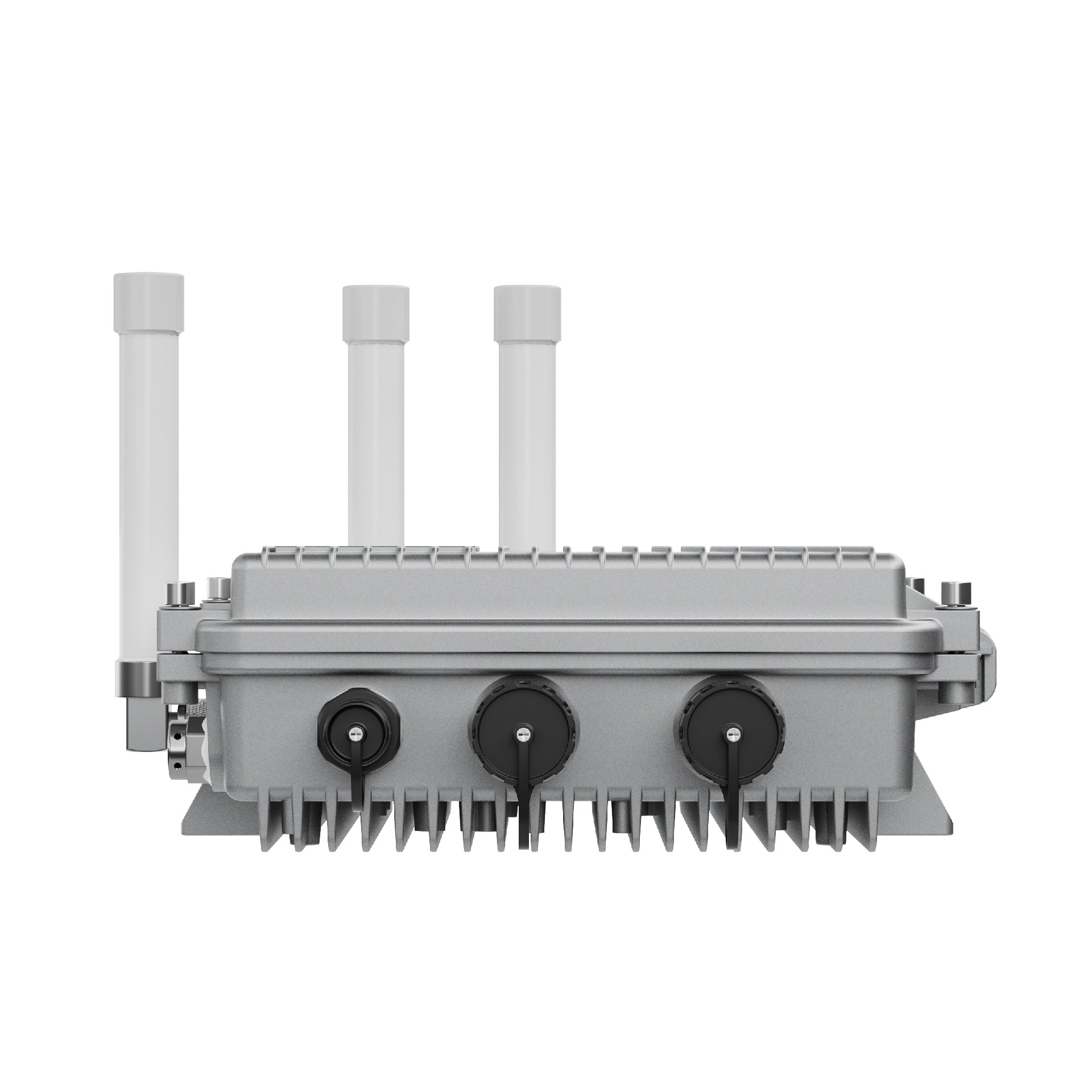

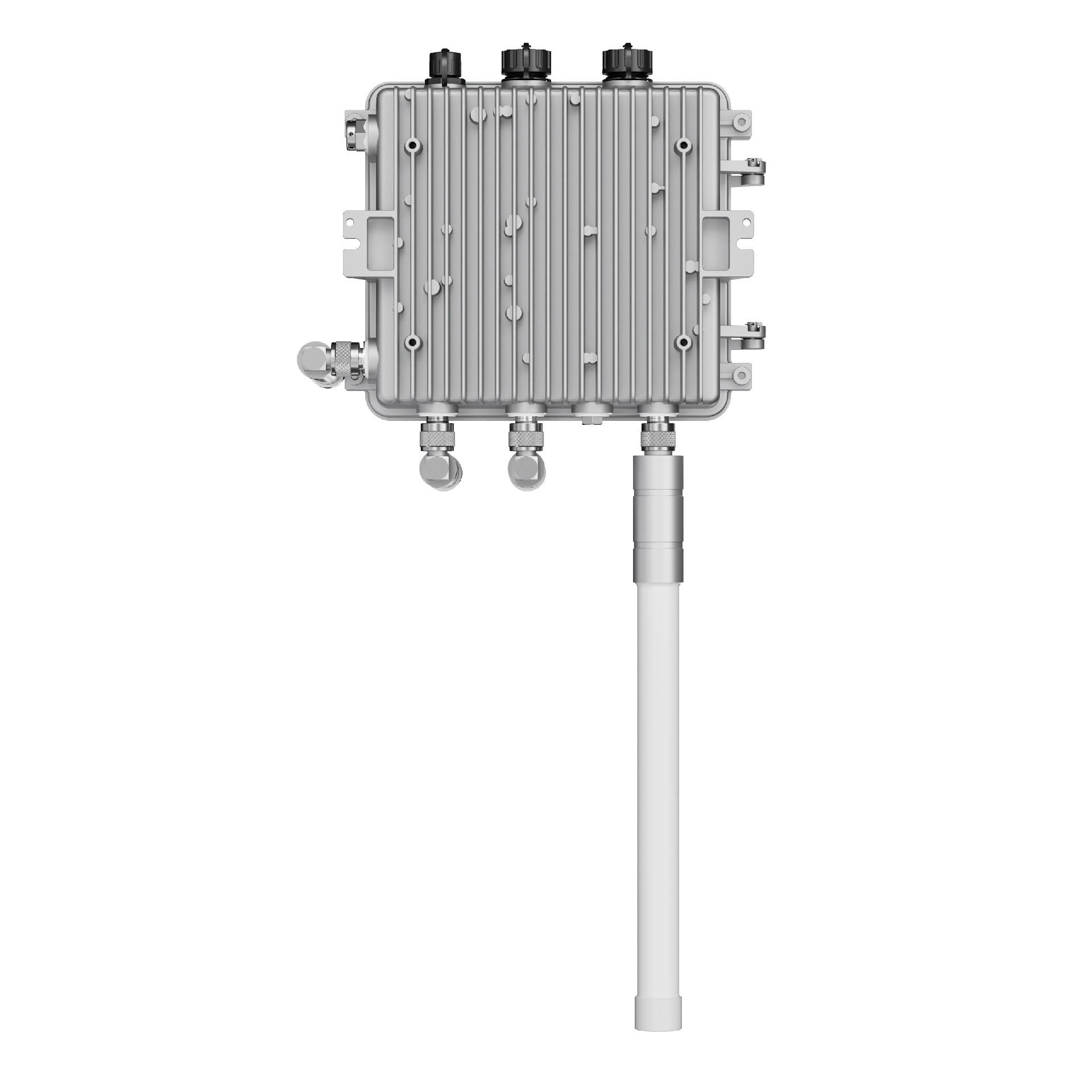

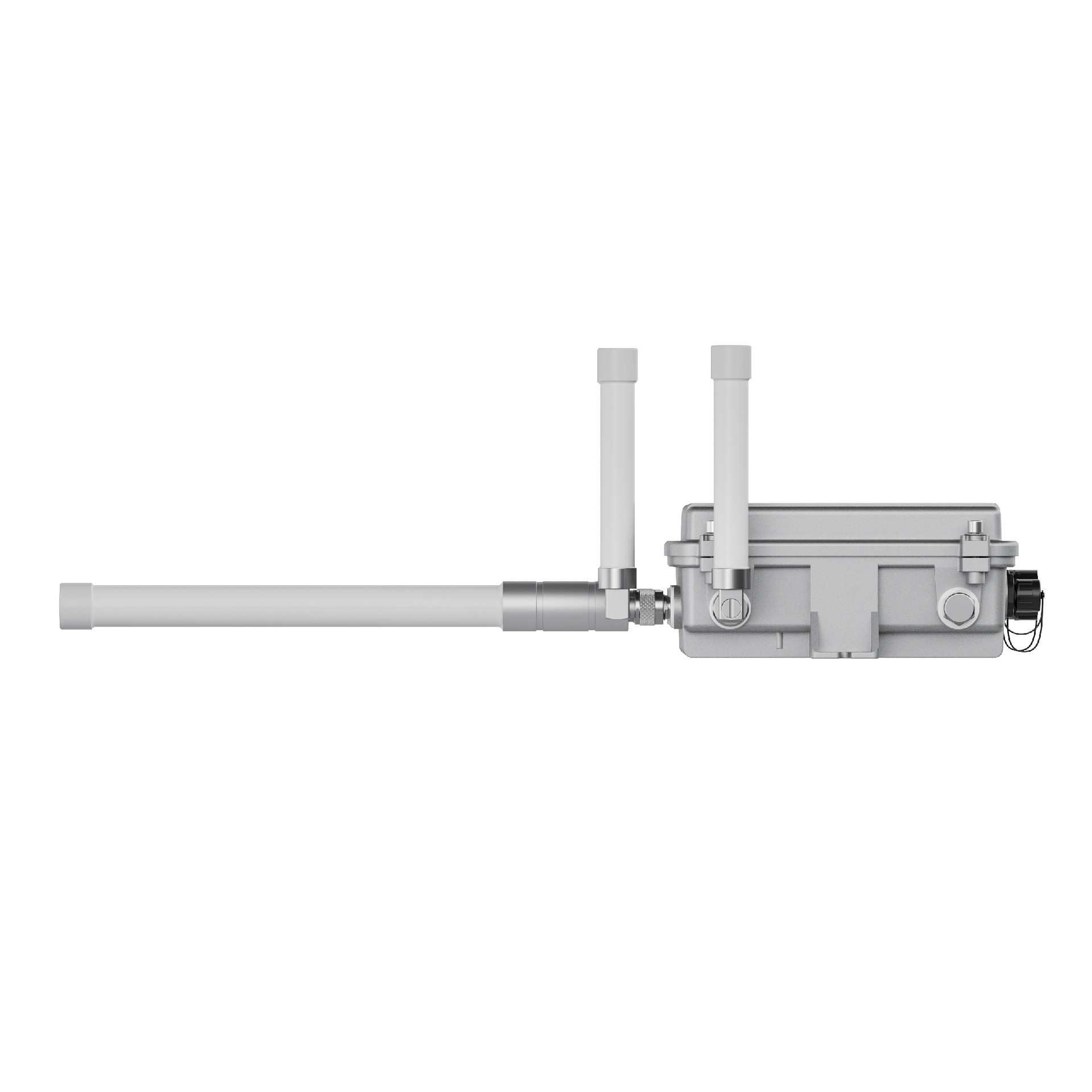

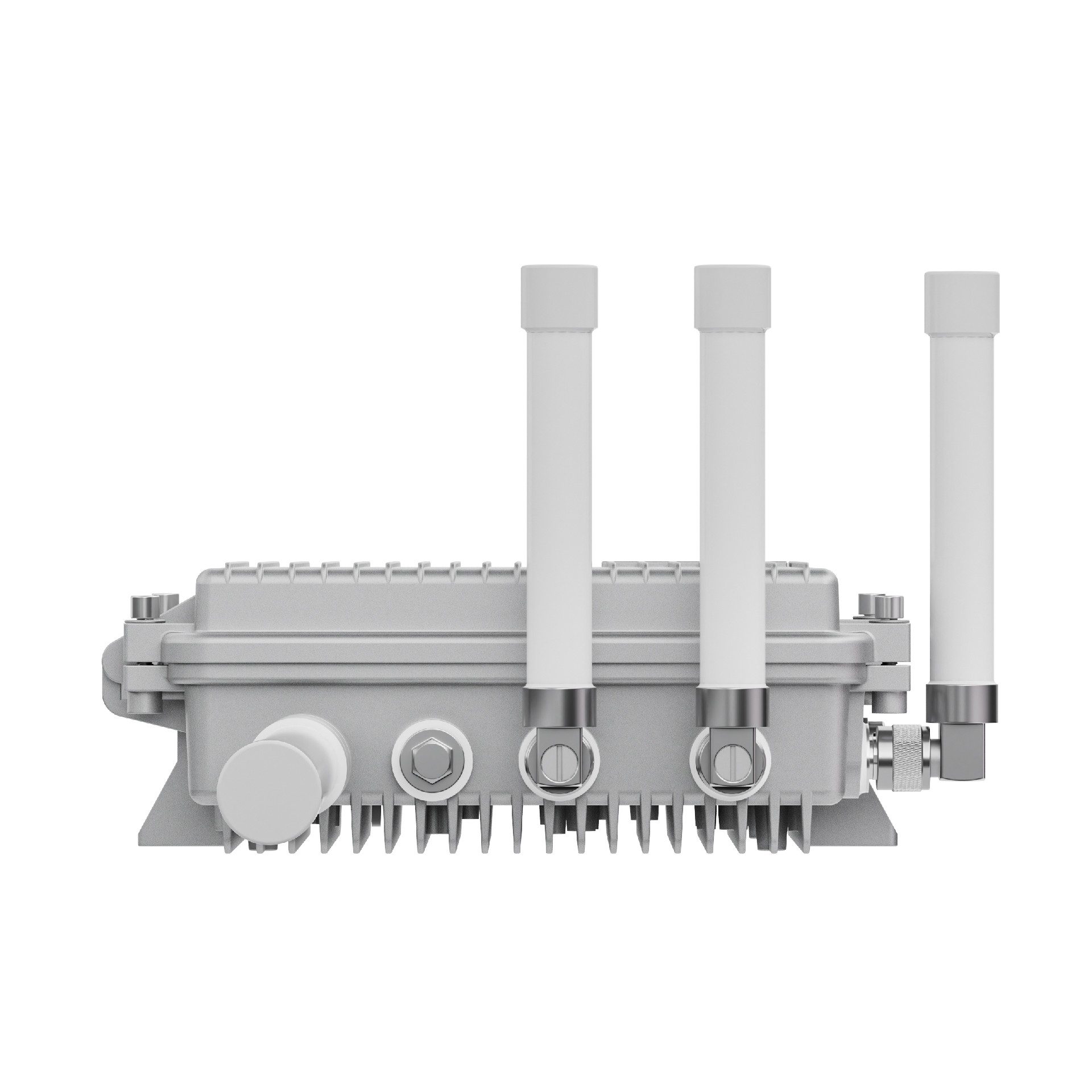

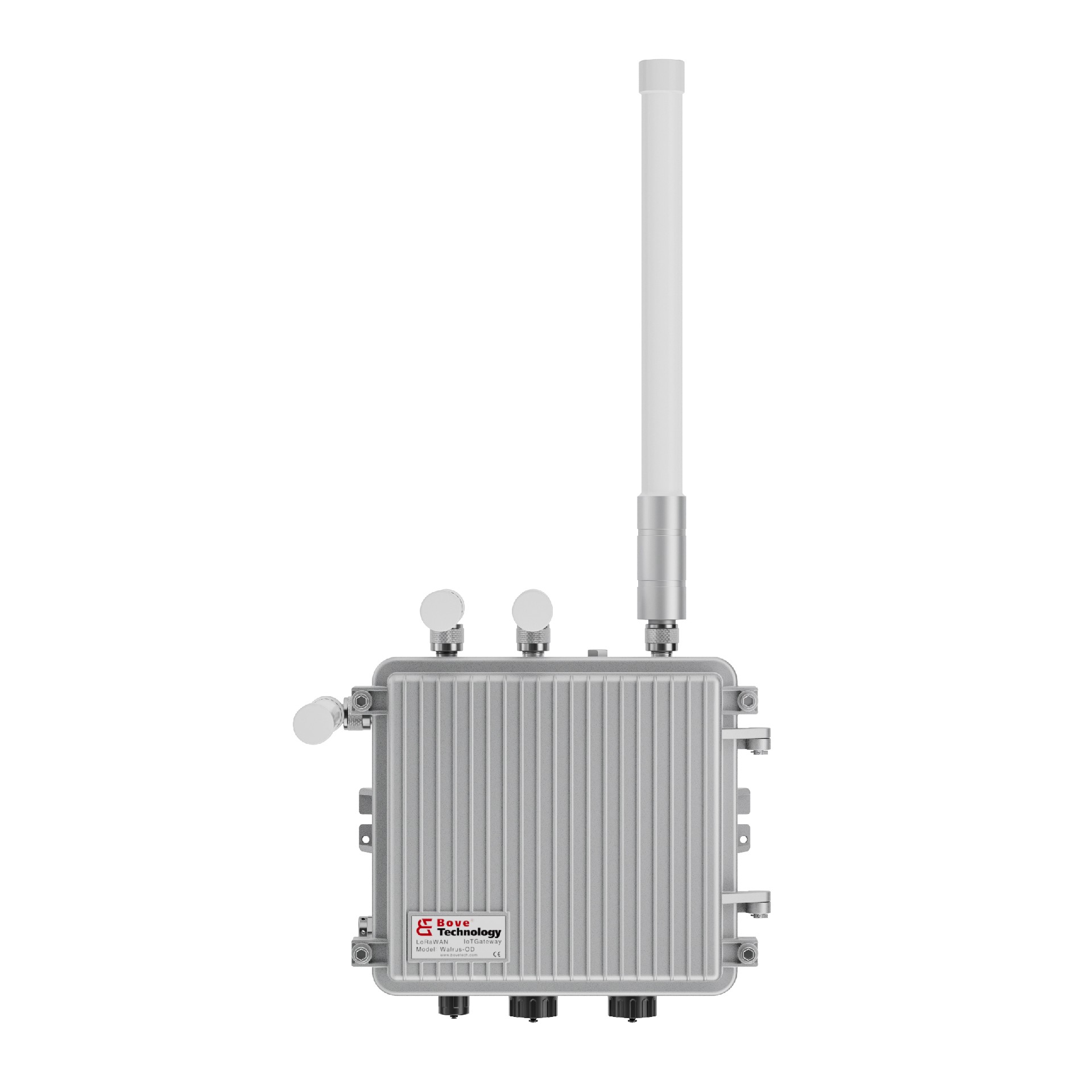

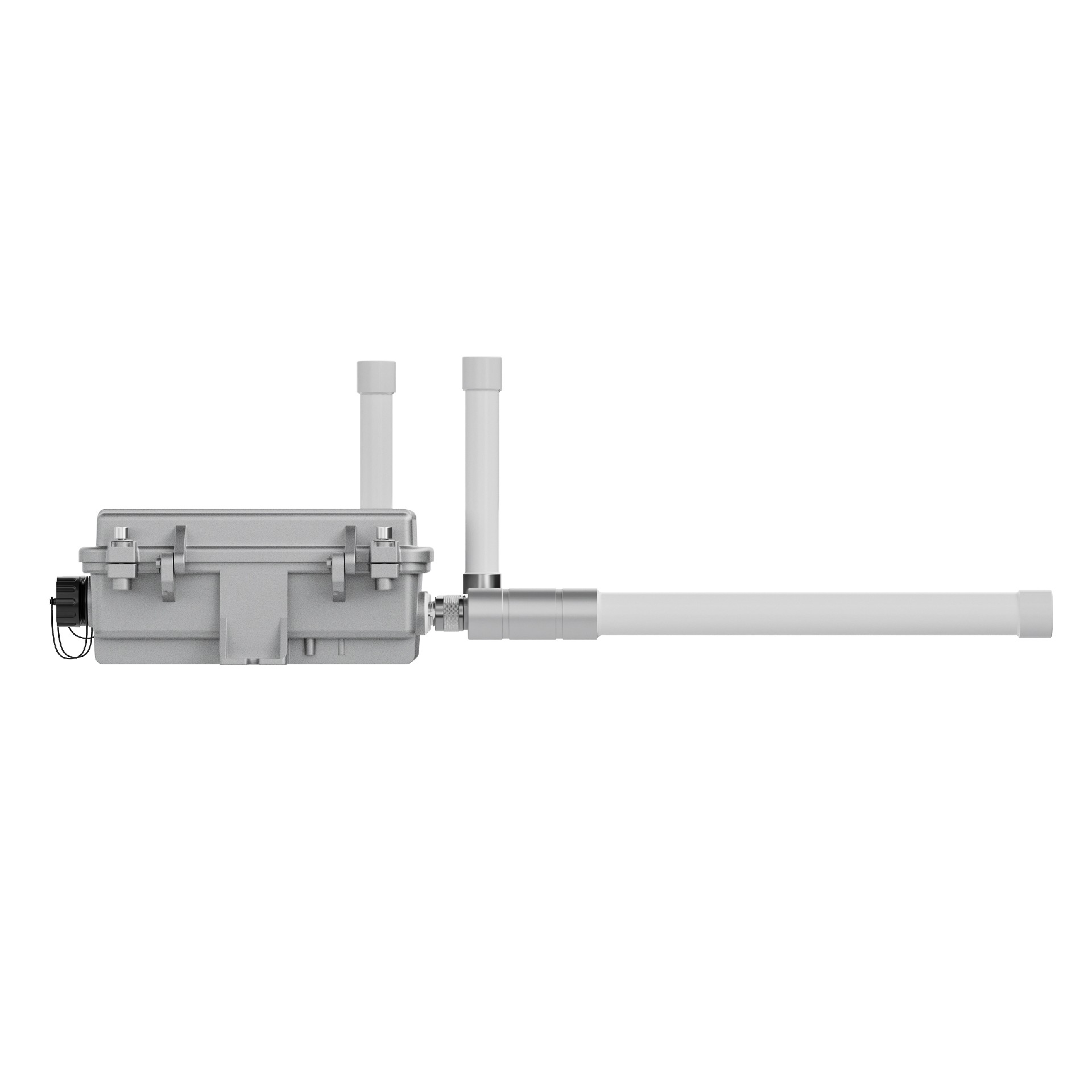

LoRaWAN-OD Gateway Communication Device
The Walrus LoRaWAN-OD Gateway is a robust, full-duplex IoT gateway engineered for high-performance connectivity for outdoor use.
Powered by a Linux OS and a 1.2GHz ARM Cortex-A53 processor, it integrates 1x or 2x Semtech SX1301 multi-channel LoRa transceivers.
The dual-SX1301 variant expands channel capacity from 8 to 16, quadrupling node handling capability compared to traditional 8-channel half-duplex gateways.
Product Details
Specifications
| Item Group | Item | Description |
| System Configuration | Core | ARM Cortex-A53 |
| Main Frequency | 1.2GHz | |
| RAM | 1Gbytes | |
| Flash | 4Gbytes eMMC | |
| Communication | Wired Network | Ethernet 10M/100Mbps |
| Mobile Cellular | GSM/3G/4G Wireless connection | |
| LoRaWAN | Long Range Wireless Communication | |
Electrical Specificatio | Power supply input | External DC Jack (default); PoE +48 Input compatible with IEEE 802.3 af/at; Internal battery backup available (optional); |
| Average Power Consumption | 5.5W | |
| LoRa Output Power | type: 14dBm@868MHz; 17dBm@470MHz Max: 27dBm | |
| LoRa Sensitivity | -141dBm@SF12, BW=125kHz | |
| Sensor | Temperature | Monitor device internal temperature |
User Interface (External) | Mobile Cellular 4G Antenna | Connect gateway with internet |
| LoRaWAN Antenna | LoRaWAN transceiver, IoT data collection | |
| Ethernet | Connect gateway with internet | |
| GPS | GPS function | |
| WiFi | WiFi accessing | |
| USB | USB interface | |
| Power supply | Power supply input | |
User Interface (Internal) | Standard SIM Card Slot | Support Standard SIM Card (25mm× 15mm ×0.8mm) |
| USB | USB bootloader (Device Firmware Upgrade) | |
| UART | UART Terminal for debugging | |
| LED400 (Internal) | System indicator LED600 (Internal) | |
| LED600 (Internal) | Ethernet full/half duplex indicator | |
| LED601 (Internal) | Ethernet link status indicator | |
| LED602 (Internal) | Ethernet data speed indicator | |
| LED206 (Internal) | Charging indicator | |
| LED207 (Internal) | Charged indicator | |
| LED500 (Internal) | 4G modem | |
Dimensions Installation | Dimensions | 210 x 200 x 85 mm |
| Installation | Derrick installation, Fixed on the wall | |
| Operating Range | Operational temperature range | -40 to +75 °C |
| Storage temperature range | -40 to +85°C |
