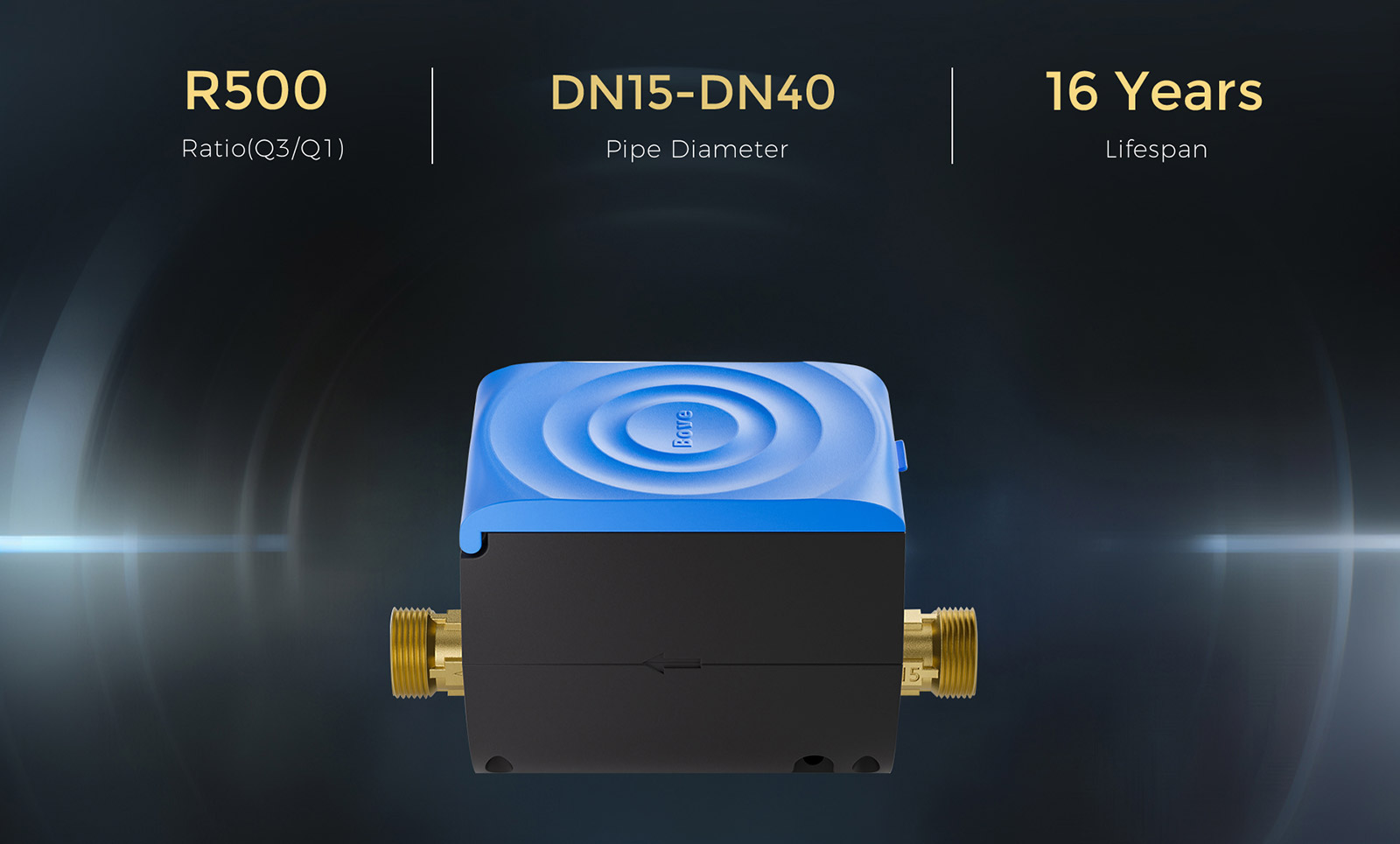

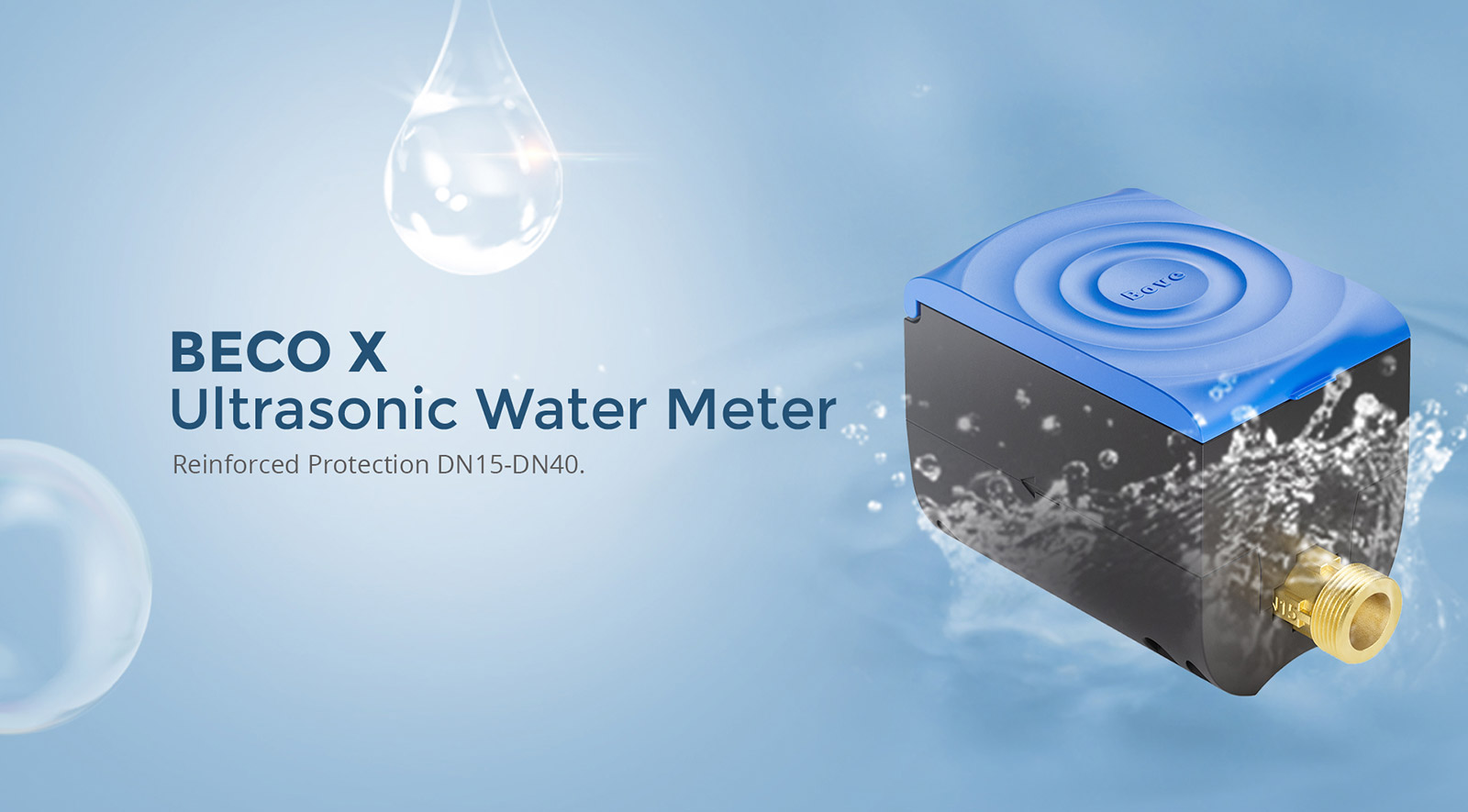

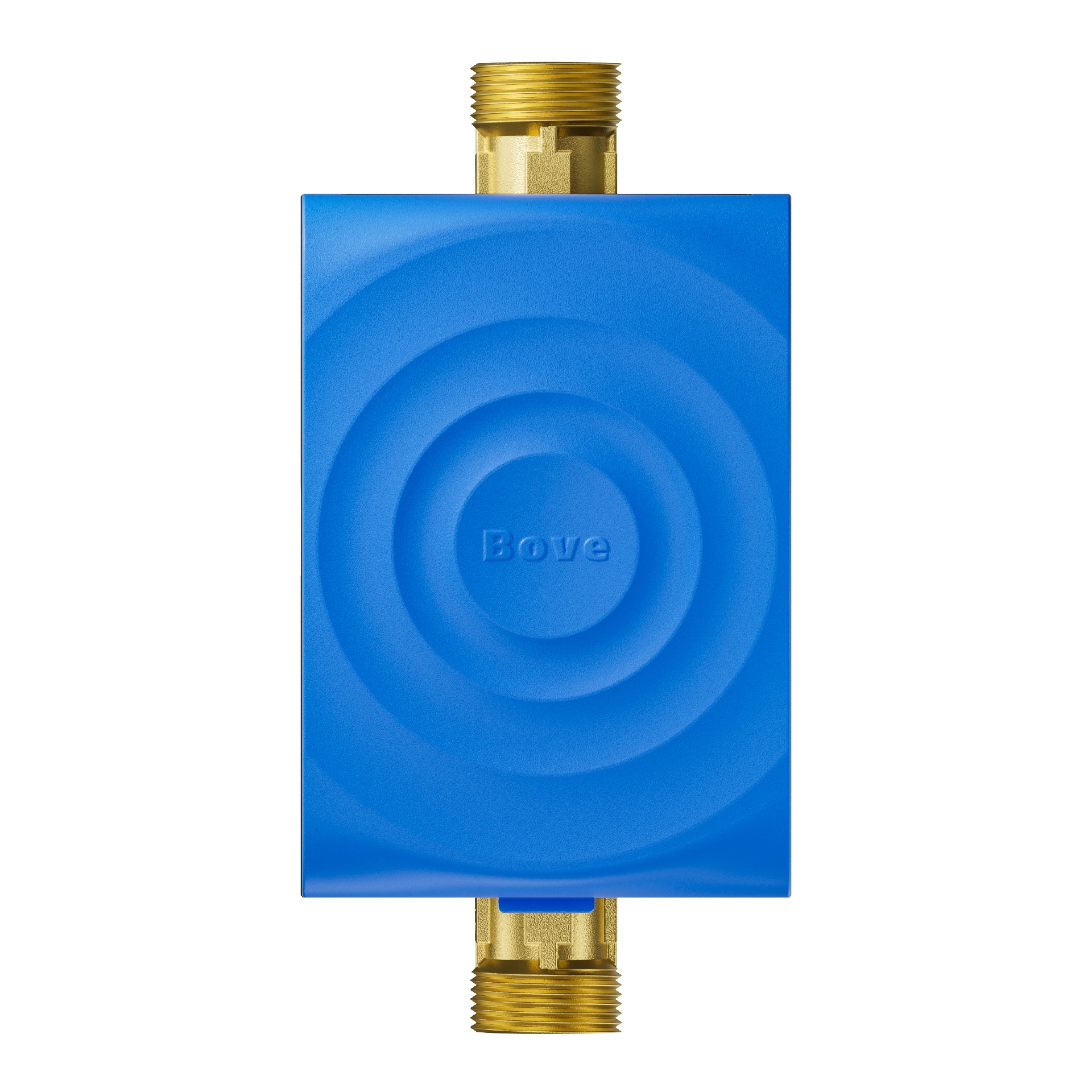

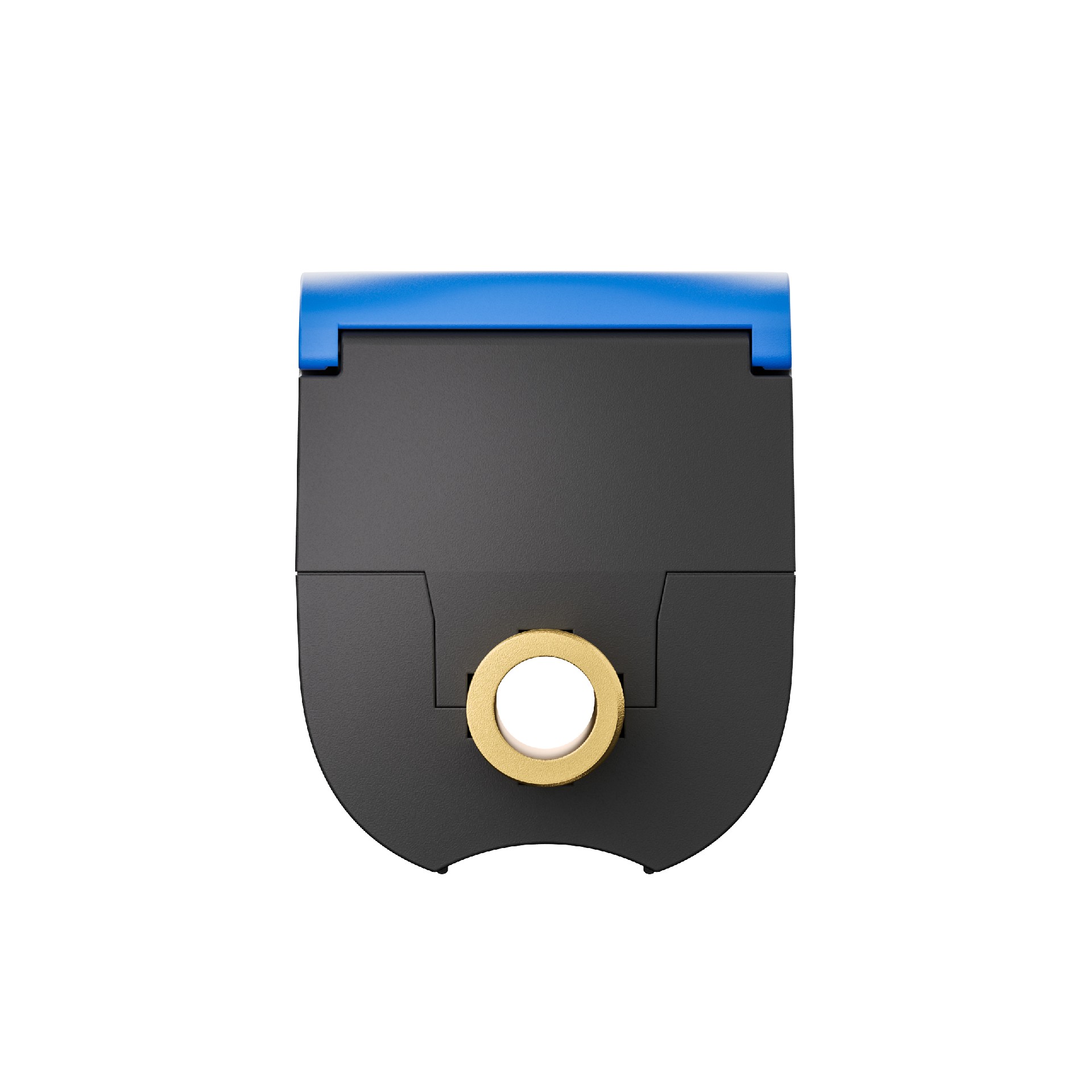

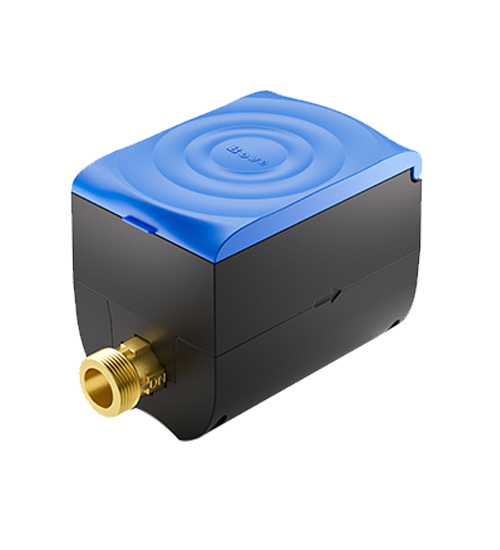

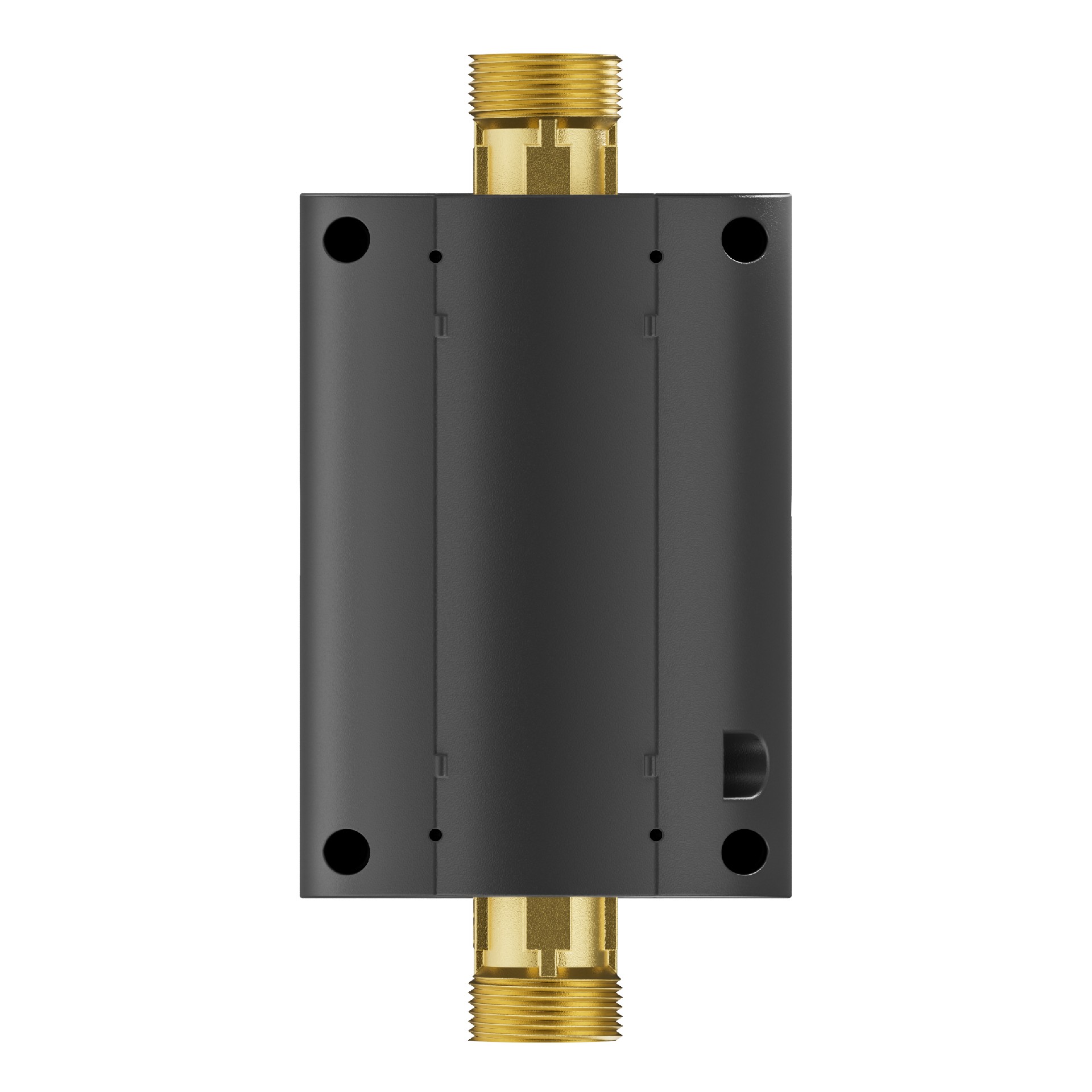

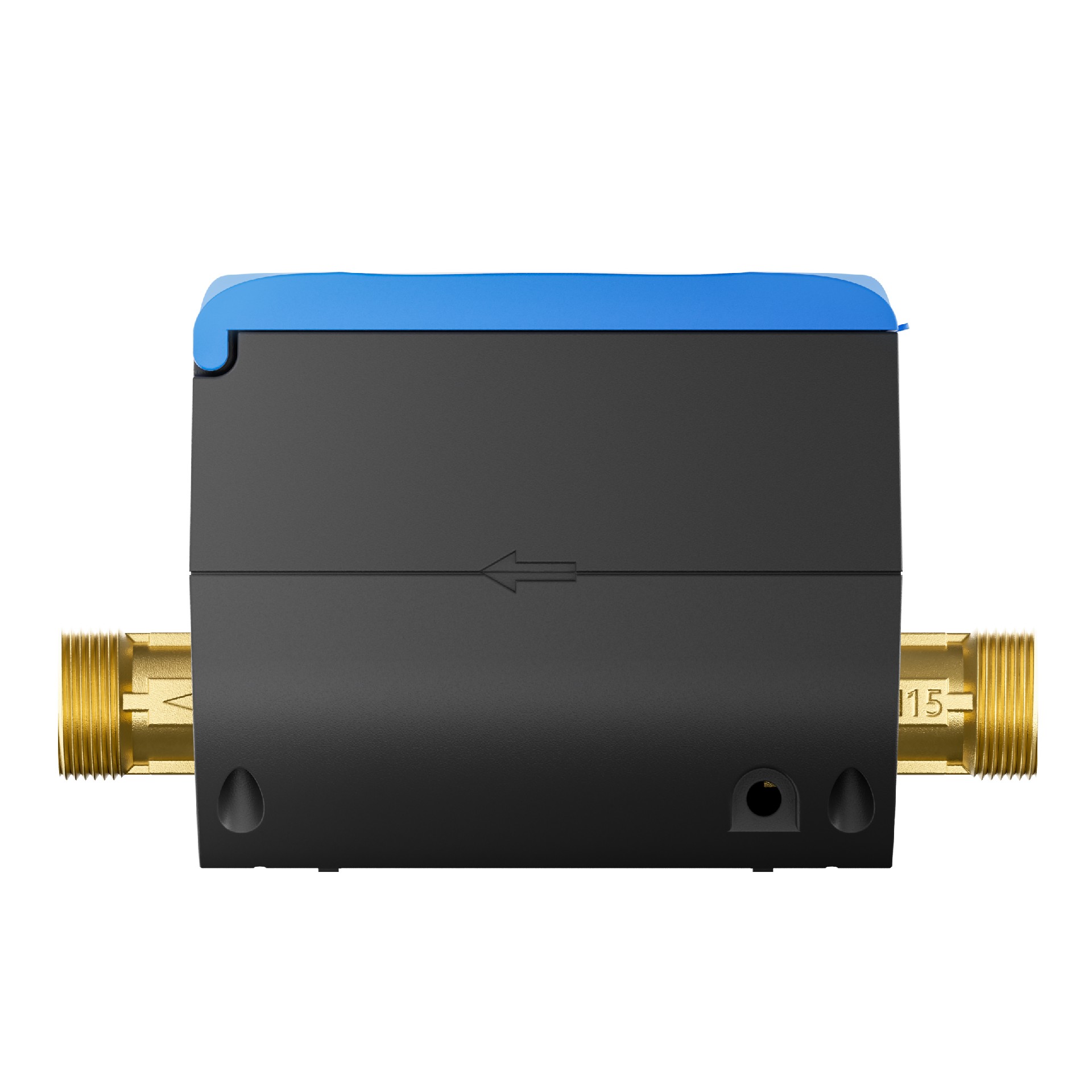

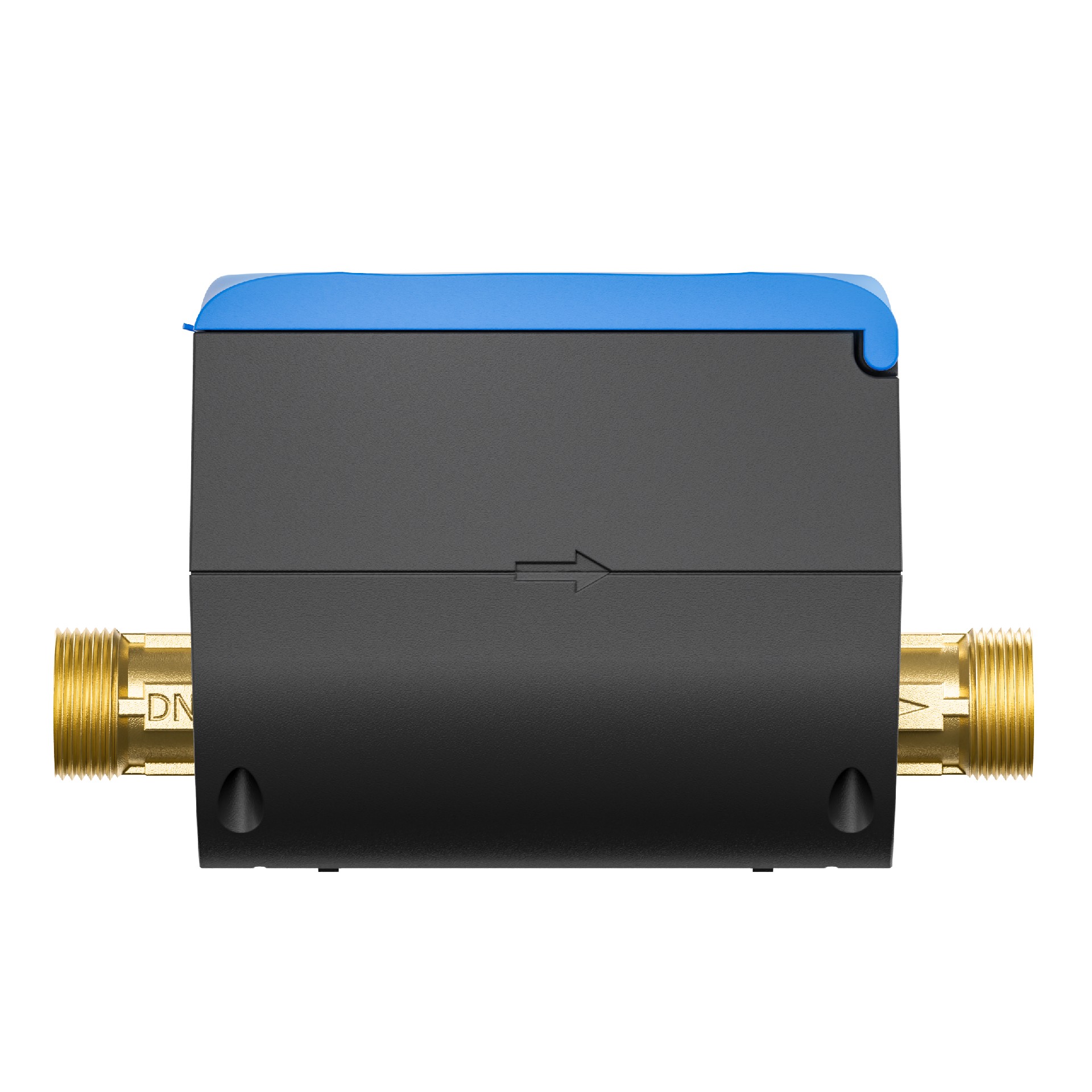

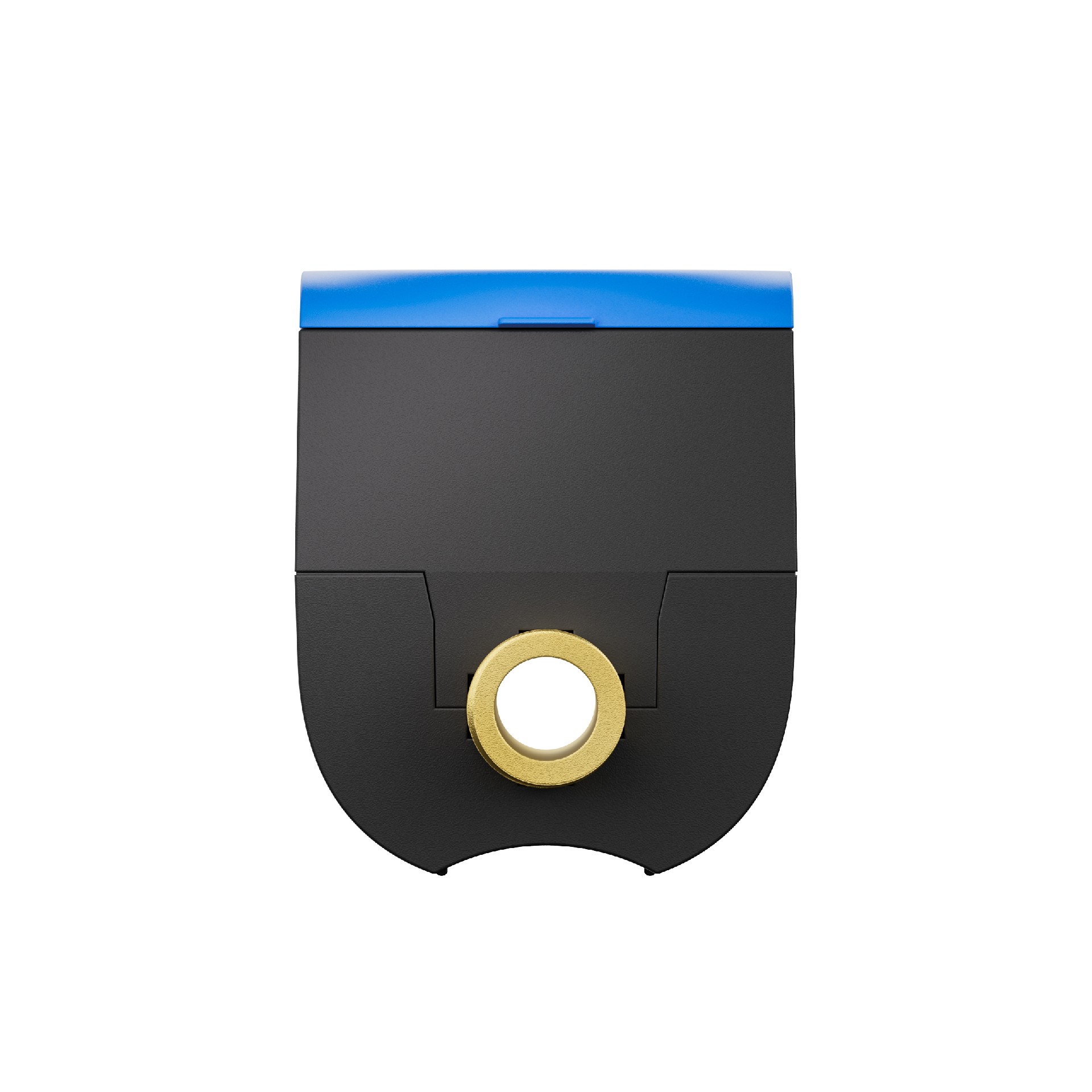

BECO X Ultrasonic Water Meter
The BECO X ultrasonic water meter, devoid of moving parts, ensures unparalleled accuracy and zero maintenance.
It offers a suite of both wireless and wired communication options, providing a comprehensive solution for intelligent water management.
Its stable, reliable performance has been proven in numerous countries, maintaining excellent wireless connectivity and delivering efficient data feedback.
Ideal for those seeking precision and ease of management in water utilities.
Product Detials
Specifications
Model | BECO X - 15 | BECO X - 20 | BECO X - 25 | BECO X - 32 | BECO X - 40 |
Pipe Diameter | DN15 | DN20 | DN25 | DN32 | DN40 |
Minimum Flow Rate, Q1 (m³/h) @R500 | 0.005 | 0.008 | 0.0126 | 0.02 | 0.032 |
Permanent Flow Rate, Q2 (m³/h) | 2.5 | 4.0 | 6.3 | 10 | 16 |
Maximum Flow Rate, Q3 (m³/h) | 3.125 | 5.0 | 7.875 | 12.5 | 20 |
Connection | G¾" | G1" | G1¼" | G1½" | G2" |
Length (mm) | 165 | 195 | 225 | 180 | 200 |
Width (mm) | 81 | 81 | 81 | 81 | 81 |
Height (mm) | 100 | 100 | 118 | 128 | 135 |
Temperature | Medium Range: 0.1℃…...30/50/70℃ (T30/T50/T70) Ambient temperature: 5~55 ℃ Storage temperature: -20~60 ℃ | ||||
Materials | Brass 59-1 | ||||
Metrological Class | Class 2 R160/ R200/ R250/ R400/ R500 | ||||
Maximum Operation Pressure | 1.6 Mpa | ||||
Pressure Loss | △P≤40kPa | ||||
Pressure Stage | PN16 | ||||
| Stream Field Sensitivity | U0/D0 | ||||
Protection Class | IP68 | ||||
Battery | 10/ 16 years service life | ||||
Data Storage | 24/ 120 logs, daily/ weekly/ monthly. | ||||
Environmental Requirement | E1, M1, B | ||||
Interface & Communication (optional) | Optical Port M-Bus RS-485 Pulse output LPWAN (4G (CAT1), LoRaWAN, NB-IoT, Sigfox) | ||||
Installation | Horizontal or vertical | ||||
Display and Indication | Unit: L/ m3/ Gal (Optional) LCD: 8-digit | ||||
Standard Compliance | EN14154 ISO4064 OIML R49 | ||||
