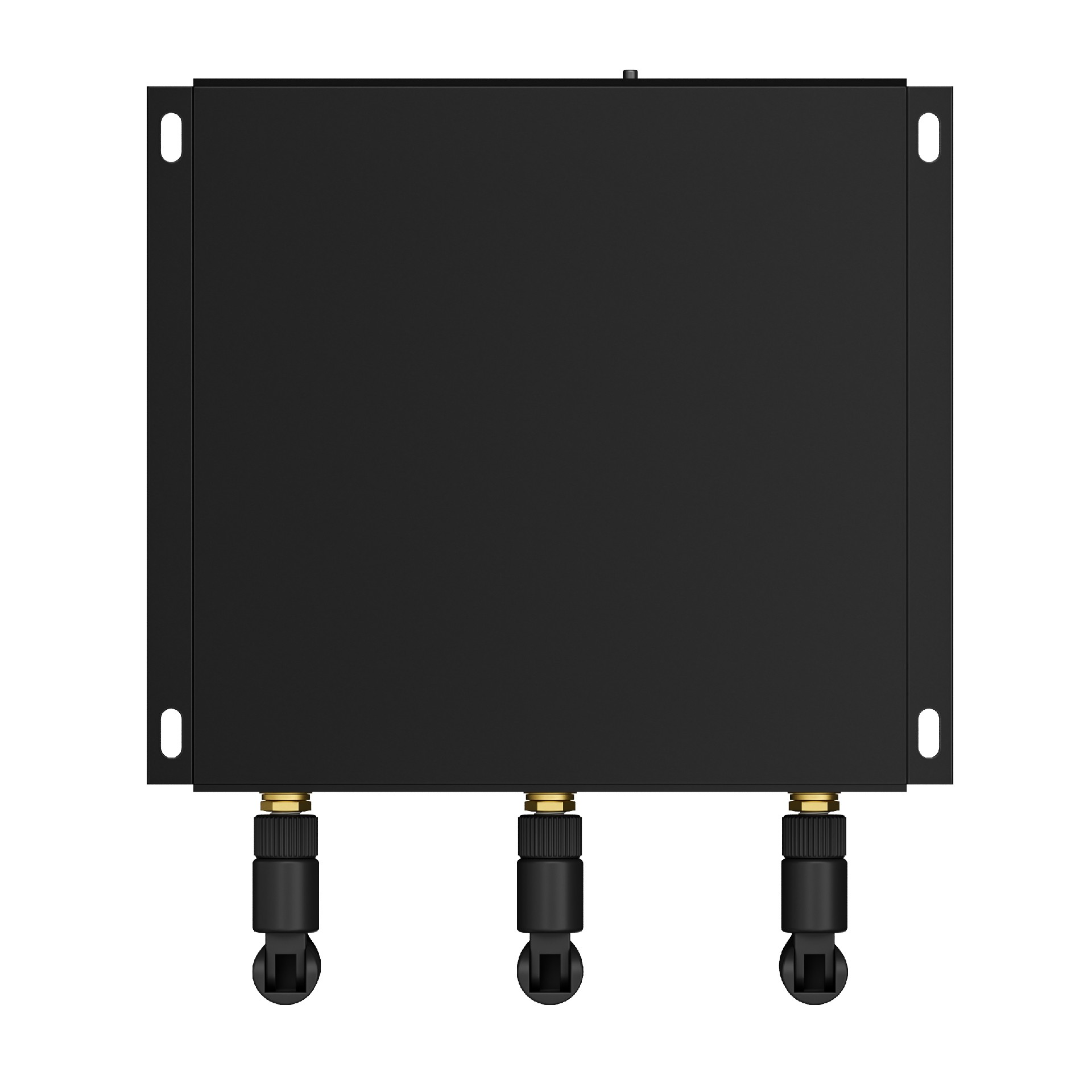

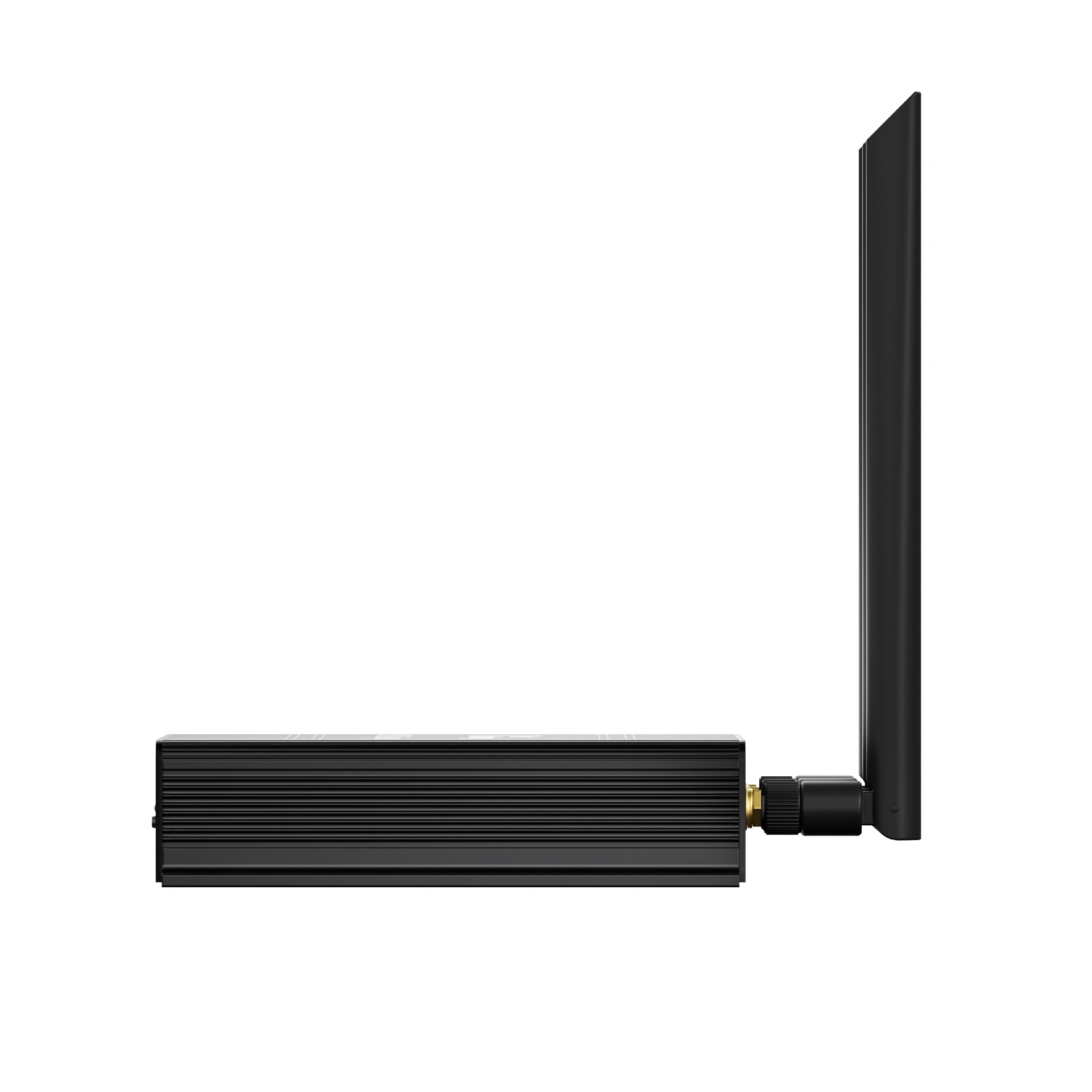

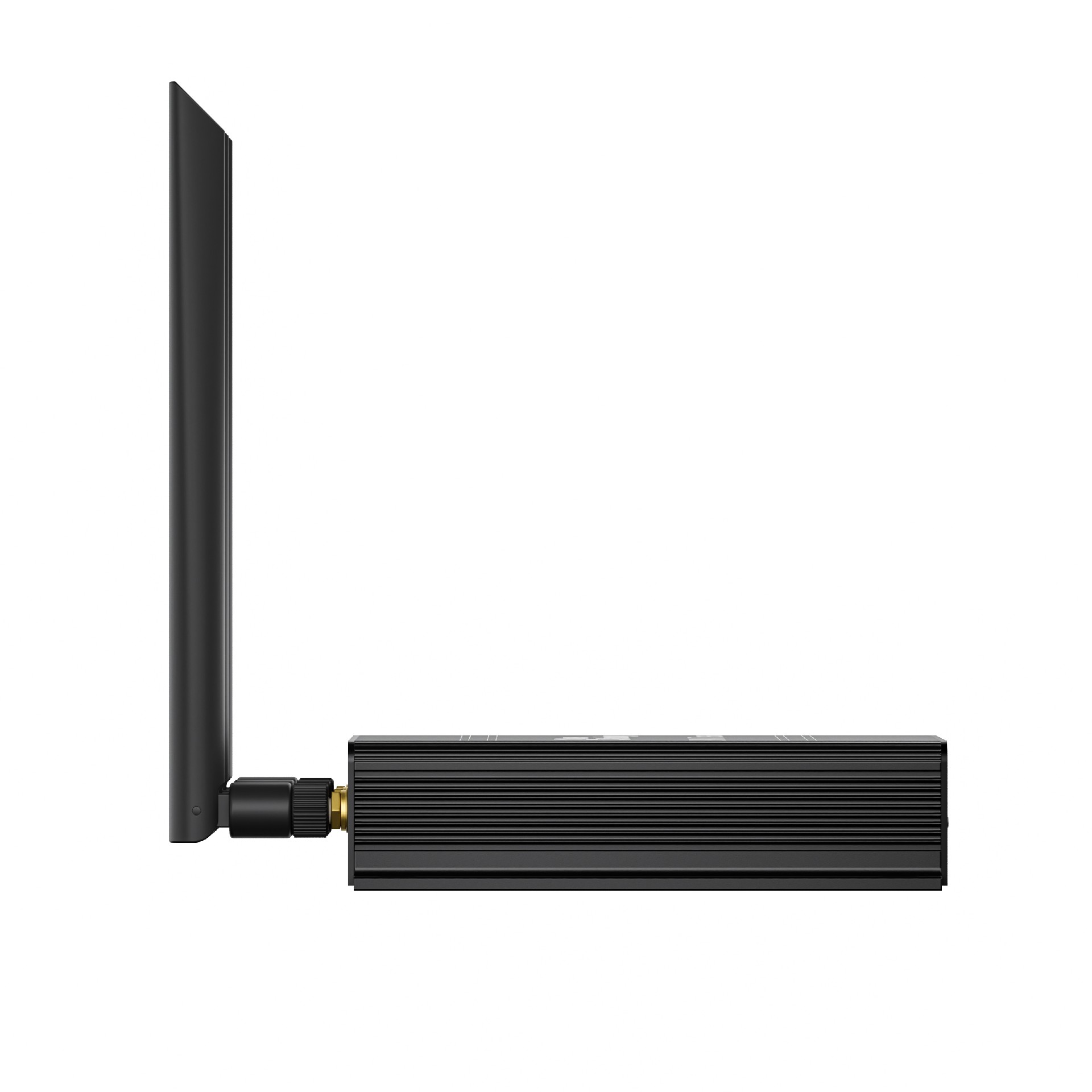

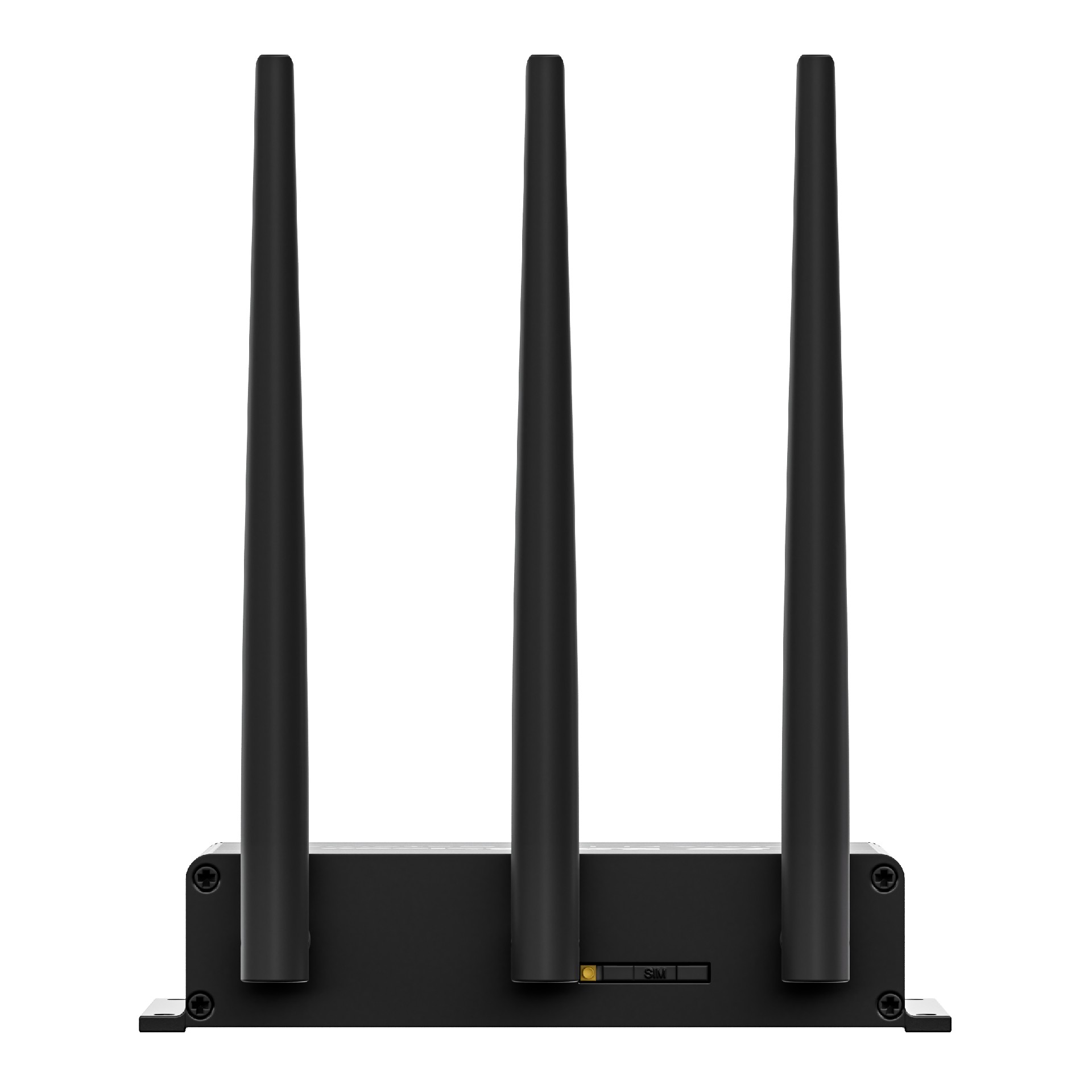

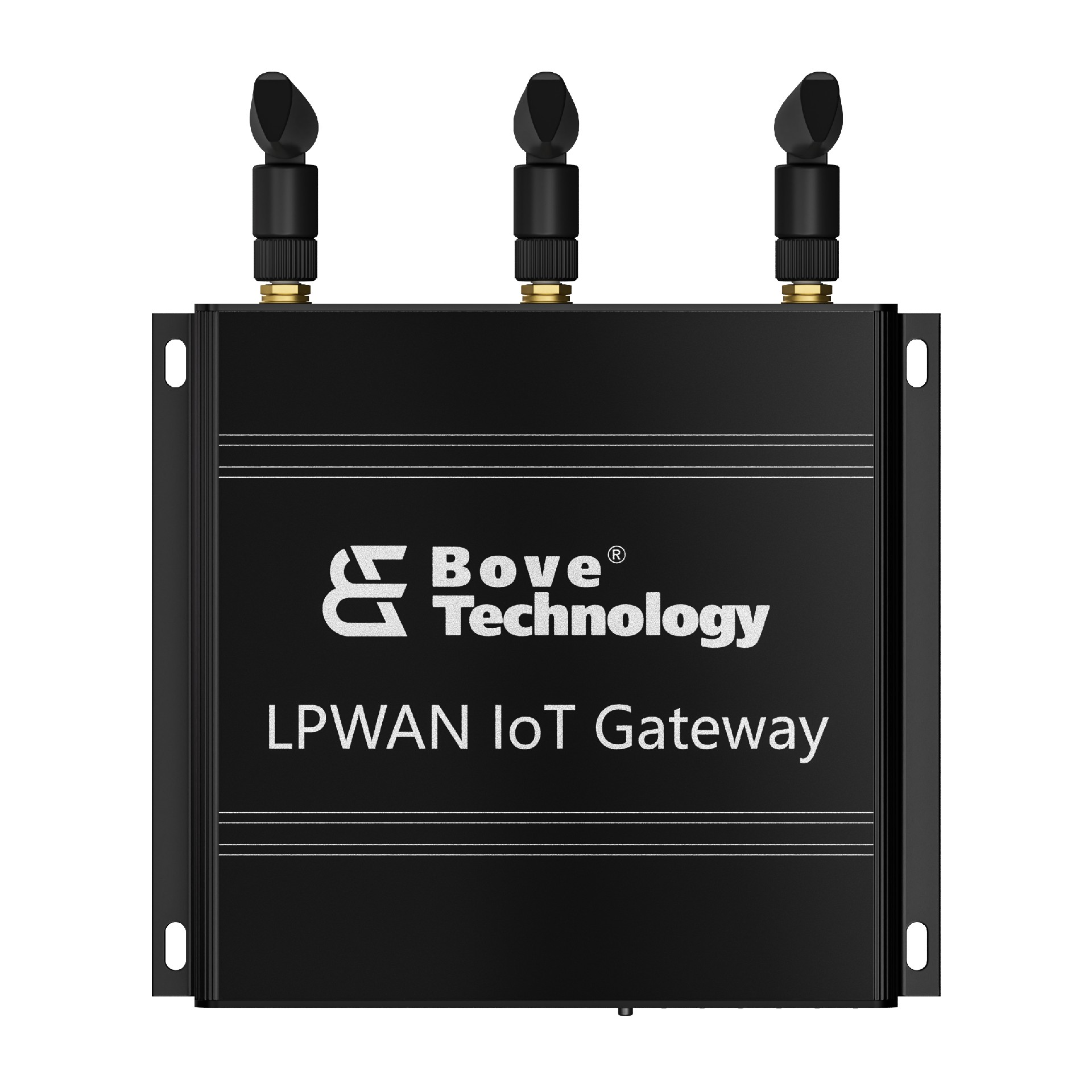

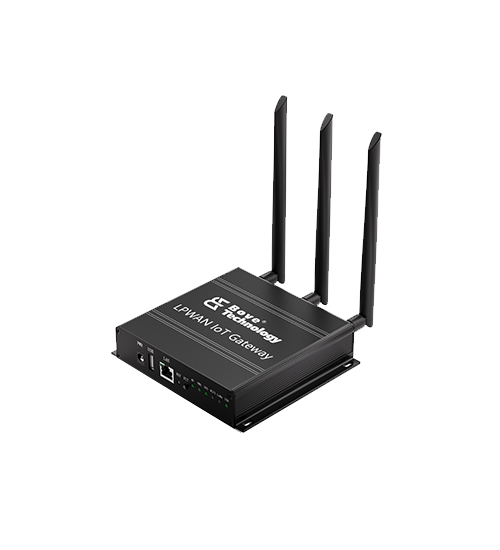

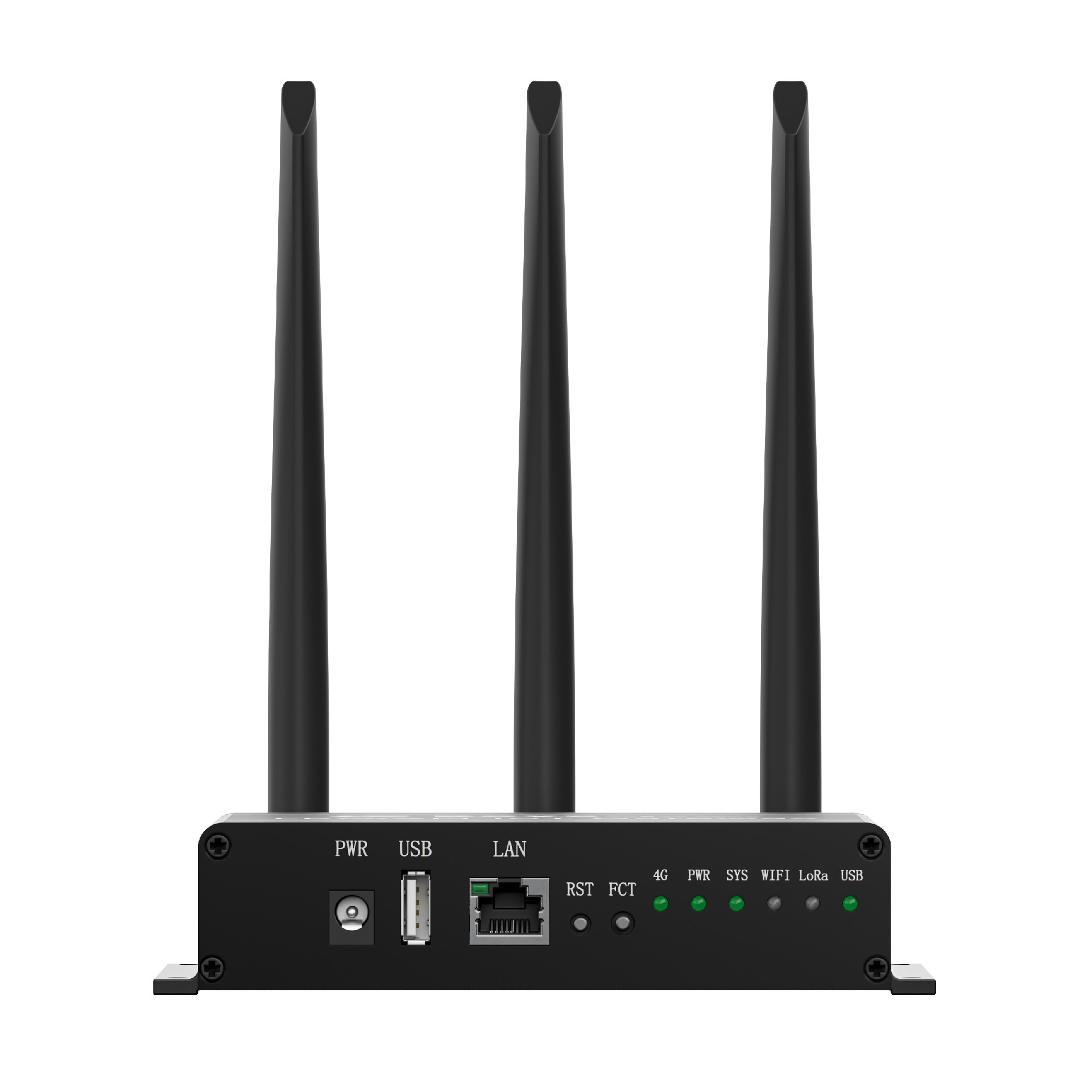

LoRaWAN-ID Gateway Communication Device
The Walrus LoRaWAN-ID Gateway is a high-performance IoT gateway designed for indoor use, supporting LoRaWAN Class A/C protocols and Wi-Fi IEEE 802.11b/g/n standards with 2.4G wireless transmission up to 150Mbps.
It enables seamless connectivity to cloud servers via Wi-Fi, ideal for low-power, wide-area network deployments.
Product Details
Specifications
| Item Group | Item | Description |
| System Configuration | Core | MIPS24KEc |
| Basic Frequency | 580MHZ | |
| RAM | 1G-bit | |
| Flash | 256M-bit | |

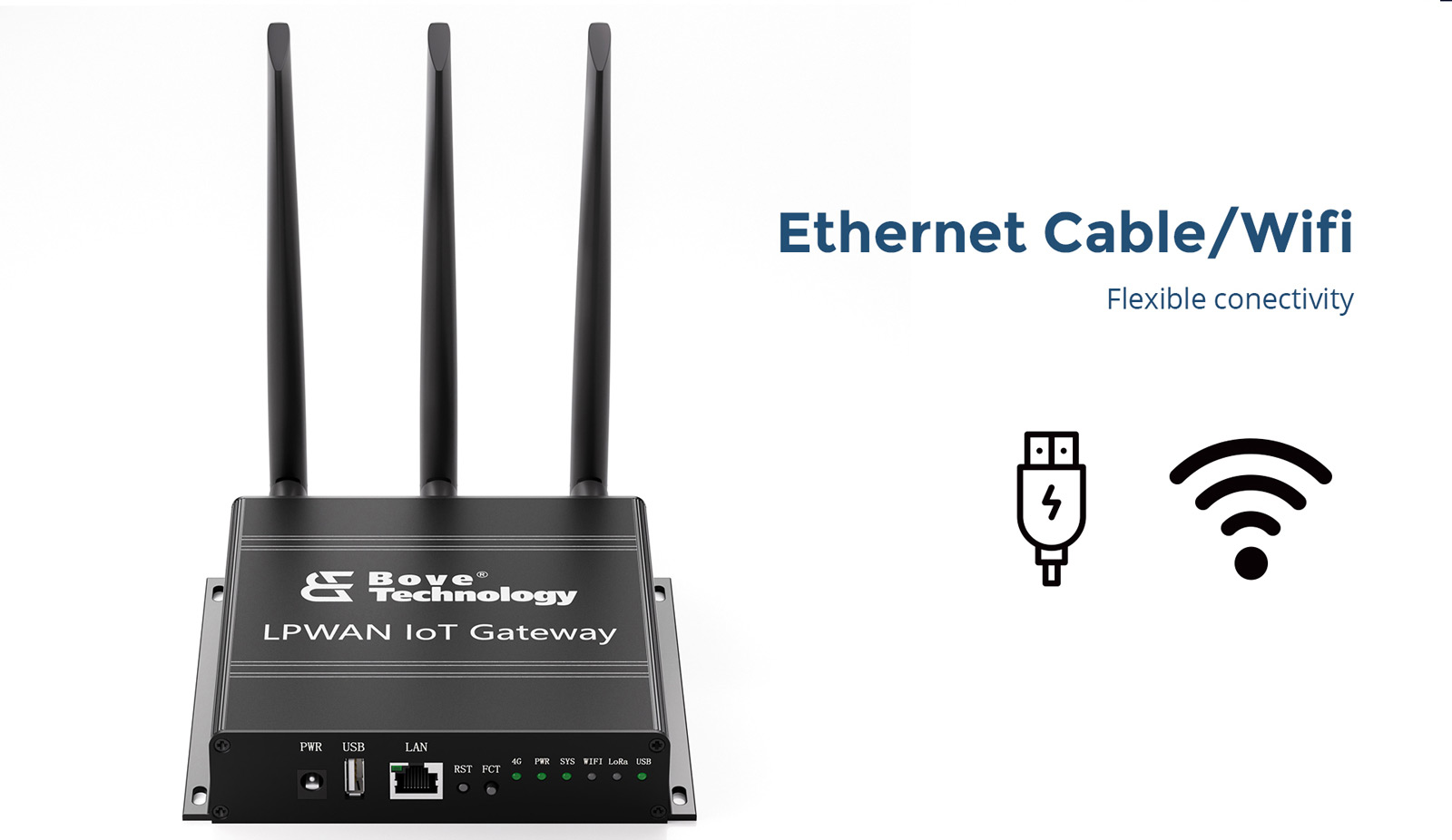

| Communication | 10M/100Mbps Interface | Access internet via cable |
LTE 4G Interface(optional) | Access internet via Wireless | |
| 2.4-2.4835G WIFI | Wireless access | |
470-510MHZ 868MHz 902-928MHz | LoRa | |
| Electrical Specification | Power supply input | DC 12V |
| Average Power Consumption | <5W | |
| 2.4G WIFI Output Power | 11n：16dBm 11g：16dBm 11b：19dBm | |
| 2.4G WIFI Sensitivity | 11n HT20 MCS7 150Mbps：-68dBm@10%PER 11g 54Mbps：-68dBm@10%PER 11b 11Mbps：-85dBm@8%PER | |
| LoRa Output Power | Max：25dBm | |
| LoRa Sensitivity | -142dBm@SF12, BW=125kHz | |
| LED | LTE 4G LED(optional) | LTE 4G Module status indication |
| POWER LED | Power access indication | |
| SYSTEM LED | System status indication | |
| WIFI LED | WIFI link status indication | |
| LoRa LED | LoRa link status indication | |
| USB LED | USB link status indication | |
| RJ45 LED | RJ45 link status indication | |
| External Interface | RJ45 | WAN/LAN Automatic switching between different modes |
| USB2.0 | Local firmware upgrade and data download | |
| WIFI antenna | 5dBi External antenna | |
| LoRa antenna | 0dBi External antenna | |
| LTE 4G antenna(optional) | 4dBi External antenna | |
| SIM card interface(optional) | Support standard SIM card big card(25mm*15mm*0.8mm) | |
| Power interface | 12V/1.5A Power supply input | |

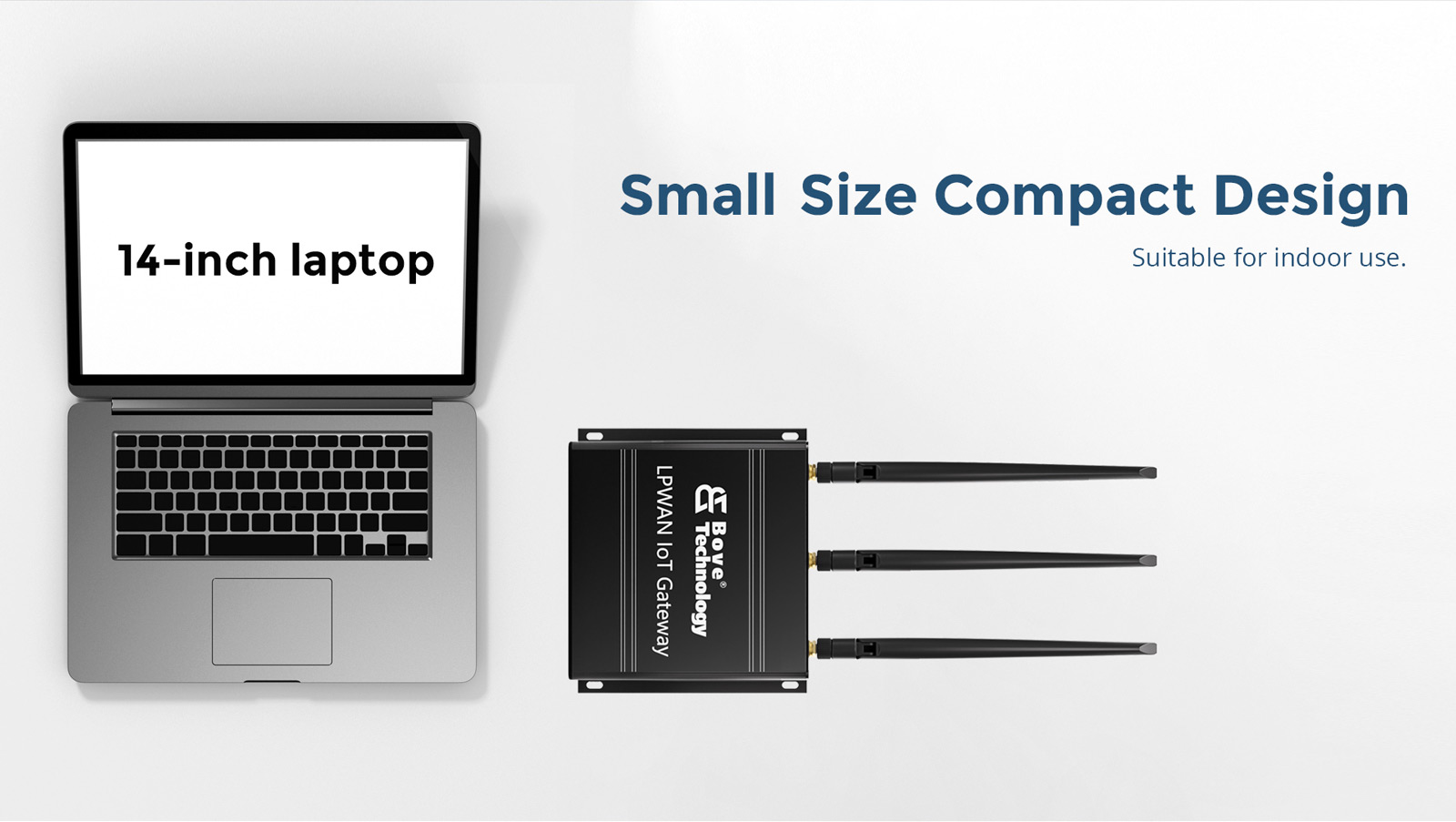

| Dimensions Installation | Dimensions | 155*138.5*33.5mm |
| Weight | 500g | |
| Installation | On the desktop or Fixed on the wall | |
| Operating Range | Operational temperature range | -20 to +65℃ |
| Storage temperature range | -40 to +85℃ |
